Component Related Documentation
The theory of operation of proportional control valves is that by varying the electrical current supplied to the proportional solenoid of a proportional control valve, the output pressure or flow rate of the valve can be controlled.
Safety Related Notes
Before working on this machine, perform lockout-tagout procedures per the rules of your plant. Determine the sources of energy on this machine – electrical, pneumatic and hydraulic – and release or vent sources of stored energy – electrical capacitors, air receivers, and hydraulic accumulators. Shut off sources of power – electrical, pneumatic and hydraulic. Safely block mechanical sources of energy such as loaded springs and loaded machine members, or safely position the machine members so they are unloaded and springs are not under tension. Beware of hot hydraulic fluid and hot surfaces which can cause burns. Never “crack a hydraulic or pneumatic fitting” to check for the presence of stored energy. Hydraulic fluid injection injuries, as well as injection injuries from many other fluids, are extremely serious and must be treated immediately by medical personnel familiar with this type of injury. Loss of body parts or death may result from improperly treated fluid injection injuries! Never use your hands to feel for a hydraulic leak! Review the schematics and think before proceeding to work on the machine to ensure you have made the machine safe to work on.
Item:
18
Description:
Joy Stick, Pump Control
Manufacturer:
P-Q Controls Inc.
Part Number:
M115-SL15F-58
Stock Code:
0.42097
Electrical Address:
N/A

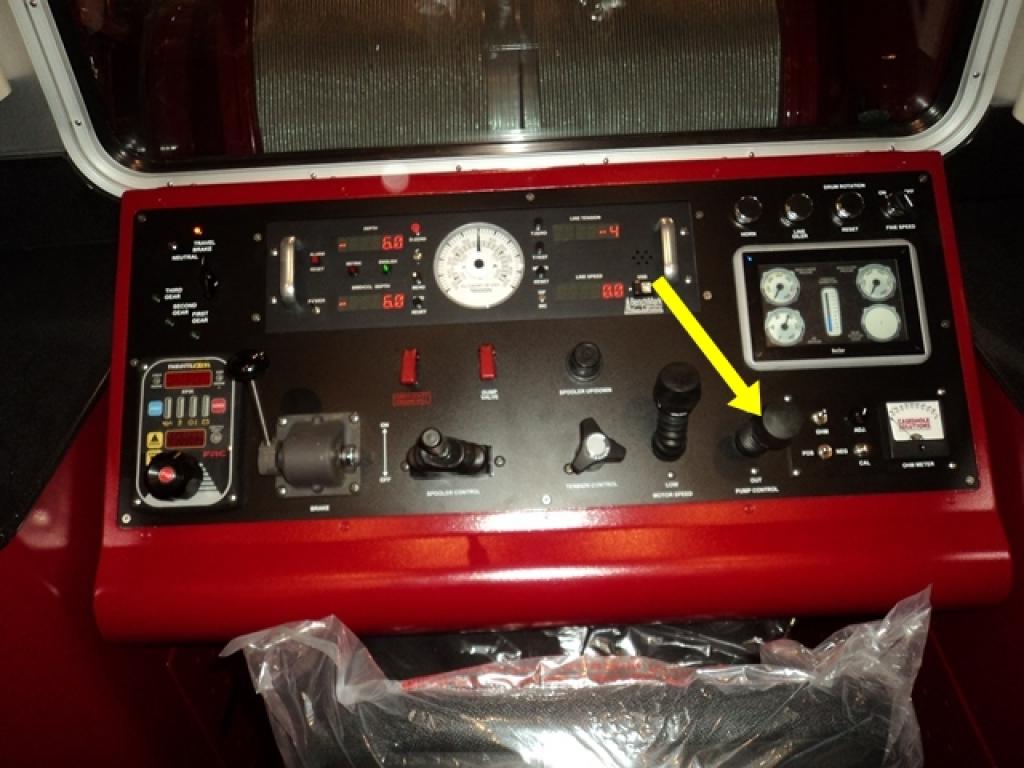

Component Application:
This joystick is used to send a proportional signal to the RC controller which regulates the winch drum pump displacement and regulates rotational speed of the winch drum motor.
