Safety Related Notes
Perform lockout/tagout before working on this machine. Release any potential energy safely before any work. Personal injury can result from hydraulic oil under pressure. Hydraulic oil under pressure can cause injury to persons on or near the machine when the pressure is suddenly released. At operating temperature, the hydraulic oil tank is hot and under pressure. Hot oil can cause burns. Do not allow hot oil or components to contact skin.
Item:
61
Description:
PTO
Manufacturer:
Chelsea
Part Number:
442GFAHXA3XD 97% 6-BOLT
Stock Code:
0.4054
Electrical Address:
N/A
Component Application:

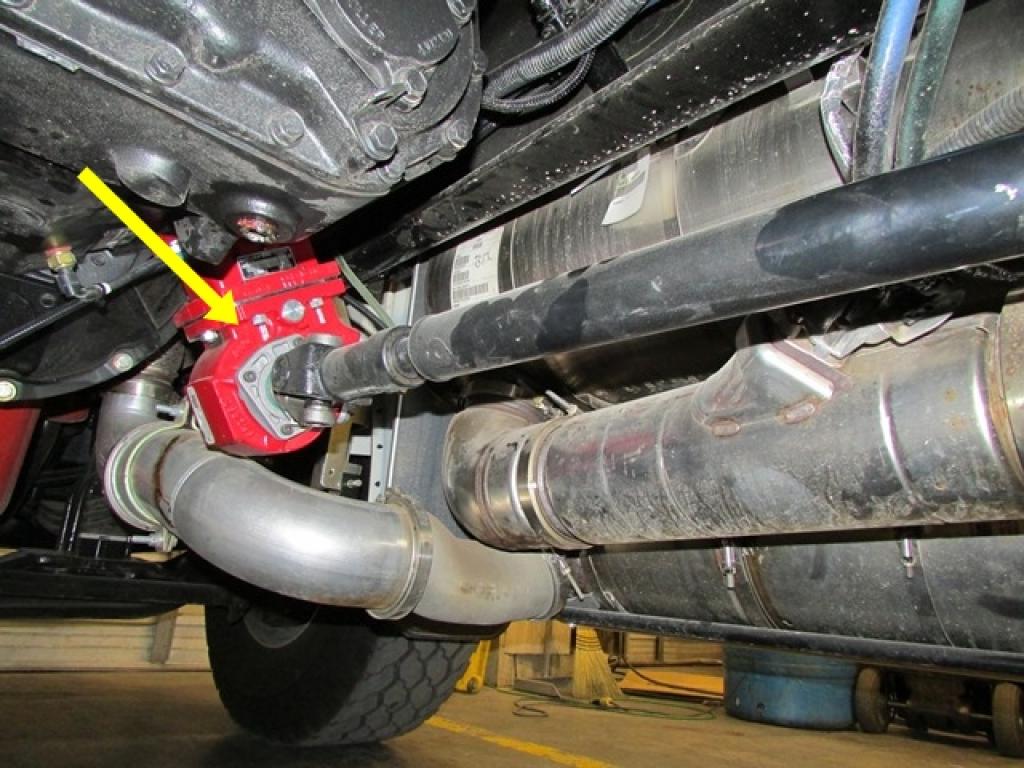

The power take off (PTO) is a housing with internal gears which mounts to the transmission and the drive gear meshes with the transmission gears. The PTO also includes an engagement mechanism which is used to engage the PTO drive gear when the clutch is depressed and the transmission gears stops rotating. This PTO provides horsepower to the hydraulic grease pump.
