Component Related Documentation
One micron is equal to one millionth of a meter. The Greek symbol µ is used to indicate “micron.” One micron equals 0.001 mm or 0.000039 inches (about 0.00004 inches). Ten microns is approximately equal to 0.0004 inches. The thickness of a sheet of typing paper is approximately 0.004 inches thick. Therefore, 10 µ is about 1/10th the thickness of a sheet of typing paper.
Safety Related Notes
Before working on this machine, perform lockout-tagout procedures per the rules of your plant. Determine the sources of energy on this machine – electrical, pneumatic and hydraulic – and release or vent sources of stored energy – electrical capacitors, air receivers, and hydraulic accumulators. Shut off sources of power – electrical, pneumatic and hydraulic. Safely block mechanical sources of energy such as loaded springs and loaded machine members, or safely position the machine members so they are unloaded and springs are not under tension. Beware of hot hydraulic fluid and hot surfaces which can cause burns. Never “crack a hydraulic or pneumatic fitting” to check for the presence of stored energy. Hydraulic fluid injection injuries, as well as injection injuries from many other fluids, are extremely serious and must be treated immediately by medical personnel familiar with this type of injury. Loss of body parts or death may result from improperly treated fluid injection injuries! Never use your hands to feel for a hydraulic leak! Review the schematics and think before proceeding to work on the machine to ensure you have made the machine safe to work on.
Item:
19
Description:

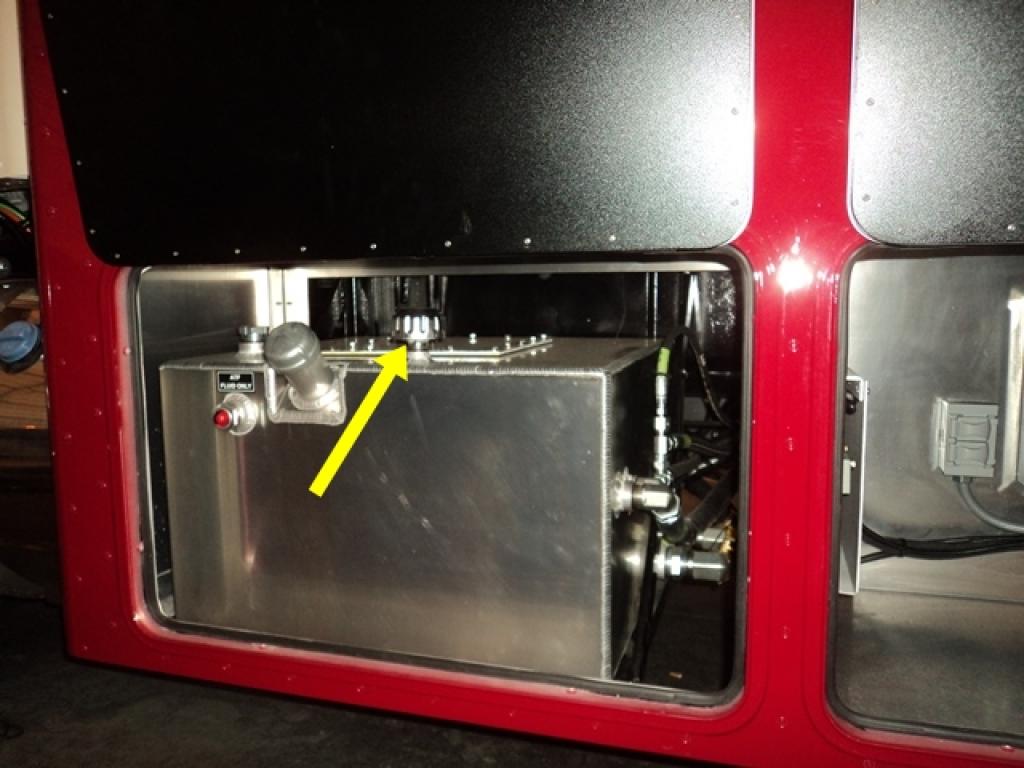

Filter Breather
Manufacturer:
Part Number:
Stock Code:
Not Provided
Electrical Address:
N/A
Component Application:
This filter breather is used to fill the reservoir with fluid and filter contamination from the air moving in and out of the reservoir during operation.
