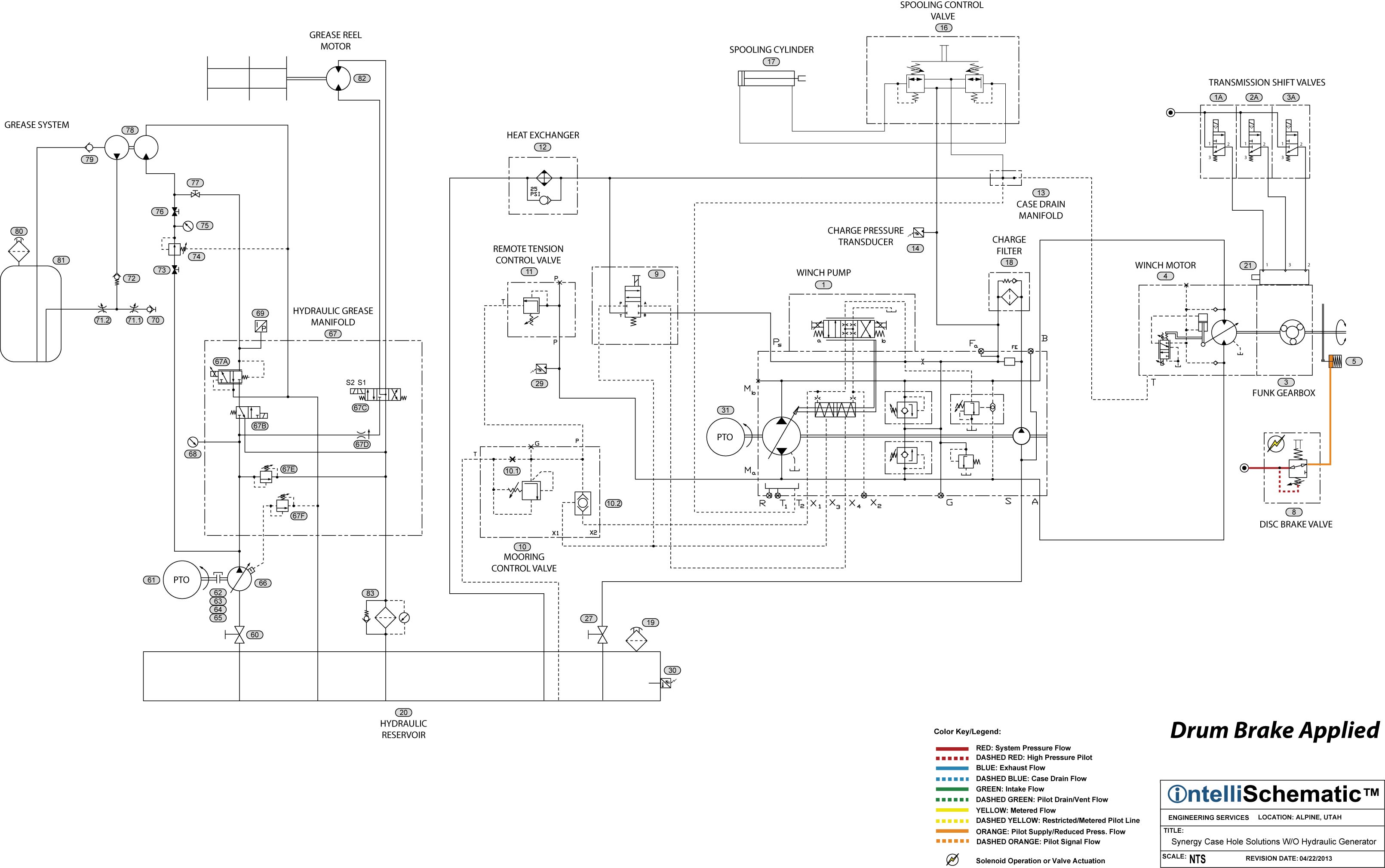

Event: Drum Brake Applied

1. See “Pump Running” for first sequence of this event.

2. Ensure that the desired operating air pressure has been reached.

3. As the operator positions the Brake Control (8) towards the “On” position, air pressure is directed through the brake control valve (8).

4. The flow of air is metered based on the position of the brake valve (8).

5. The metered air flow pushes against the spring in the brake assembly causing the brakes to apply to the brake rotor.
