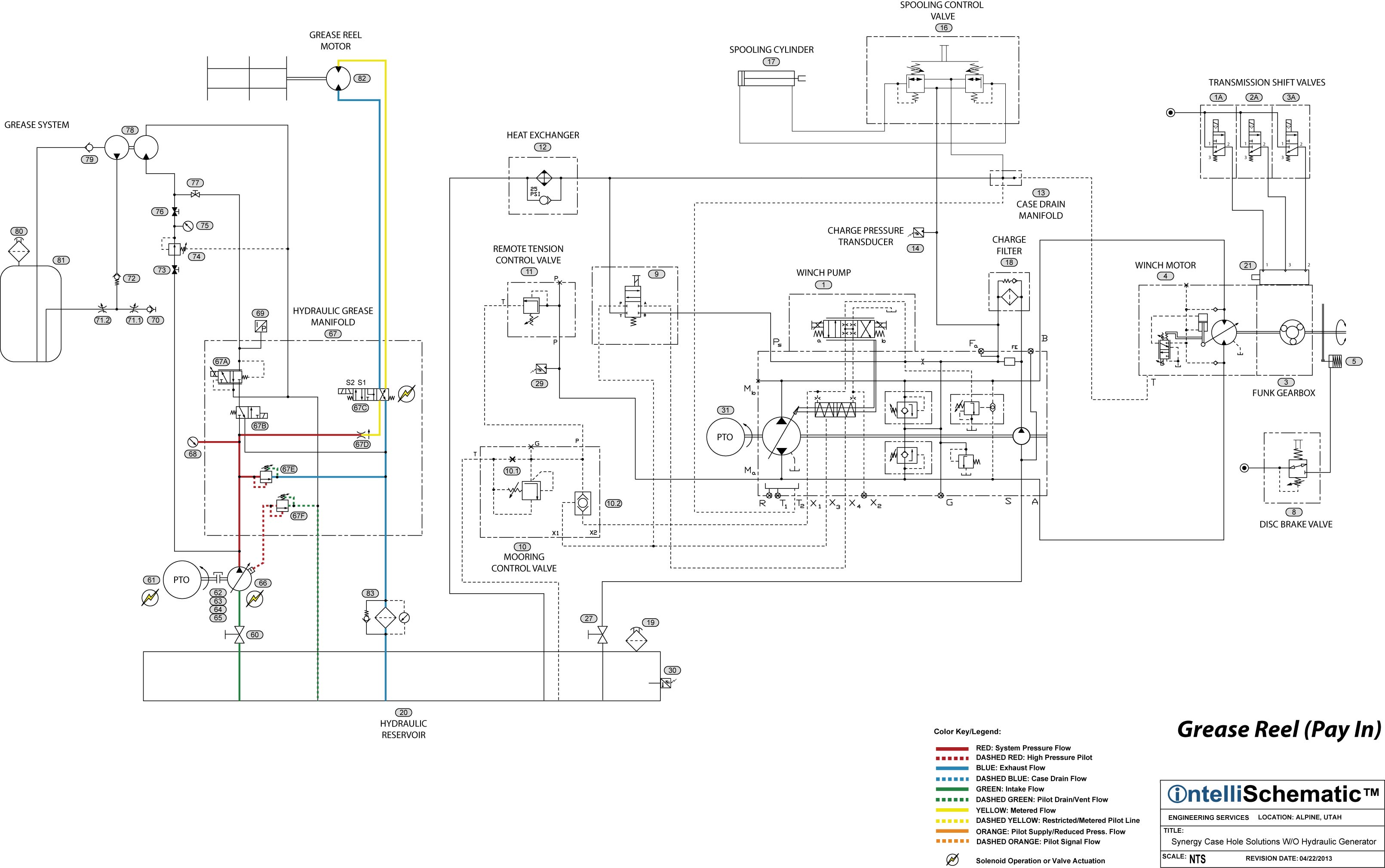

Event: Grease Reel (Pay In)

1. See “Grease Pump (Running)” for first sequence of this event.

2. The operator selects the Grease Reel Payin function and Directional Control Valve (67C) is energized and metered pressure fluid flows through the valve and rotates Motor (82) and pays the cable in.

3. Exhaust fluid flows from Motor (82), through Directional Control Valve (67C), Return Filter (83), and to Reservoir (20).
