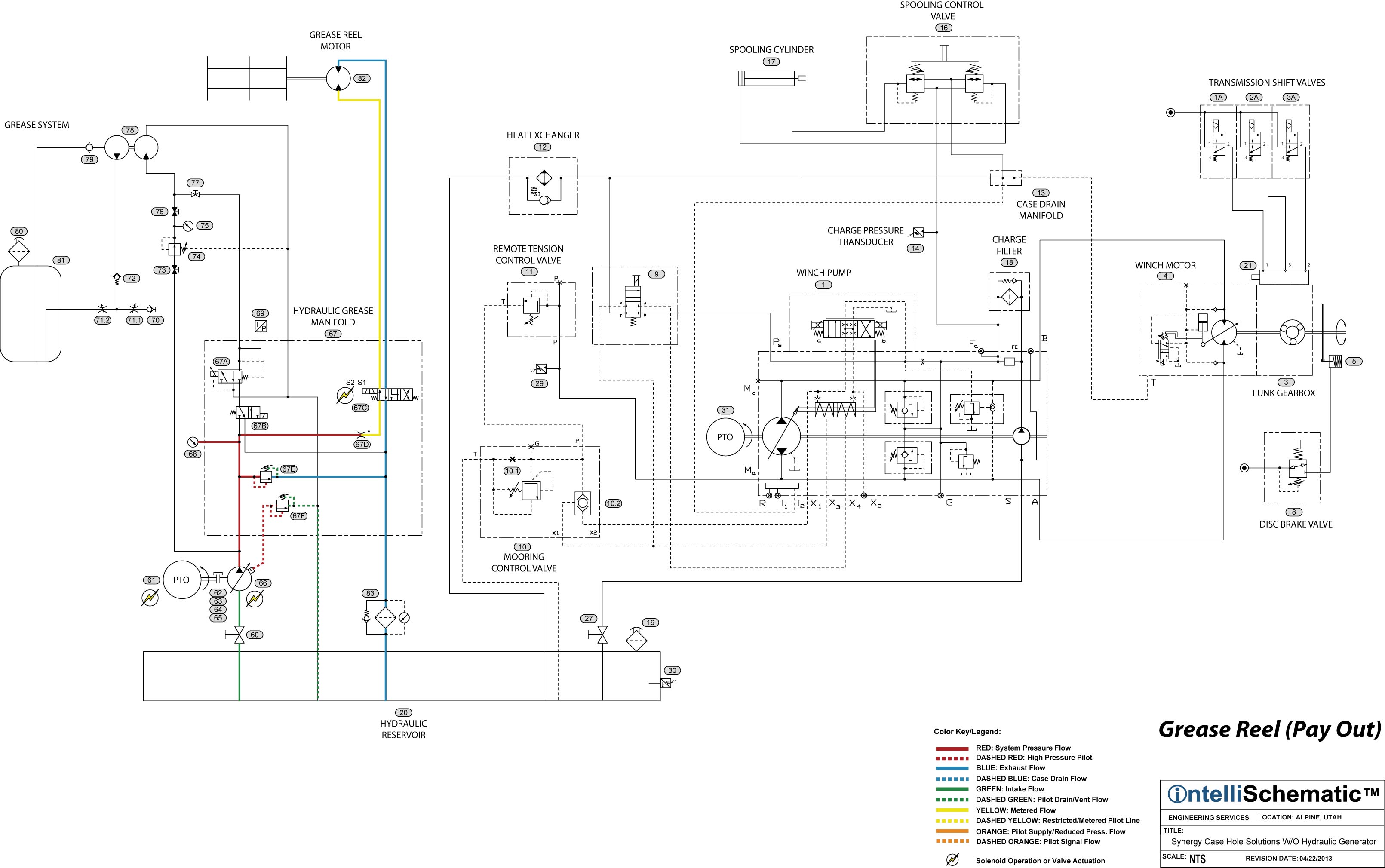

Event: Grease Reel (Pay Out)

1. See “Grease Pump (Running)” for first sequence of this event.

2. The operator selects the Grease Reel Payout function and Directional Control Valve (67C) is energized and metered pressure fluid flows through the valve and rotates Motor (82) and pays the cable out.

3. Exhaust fluid flows from Motor (82), through Directional Control Valve (67C), Return Filter (83), and to Reservoir (20).
