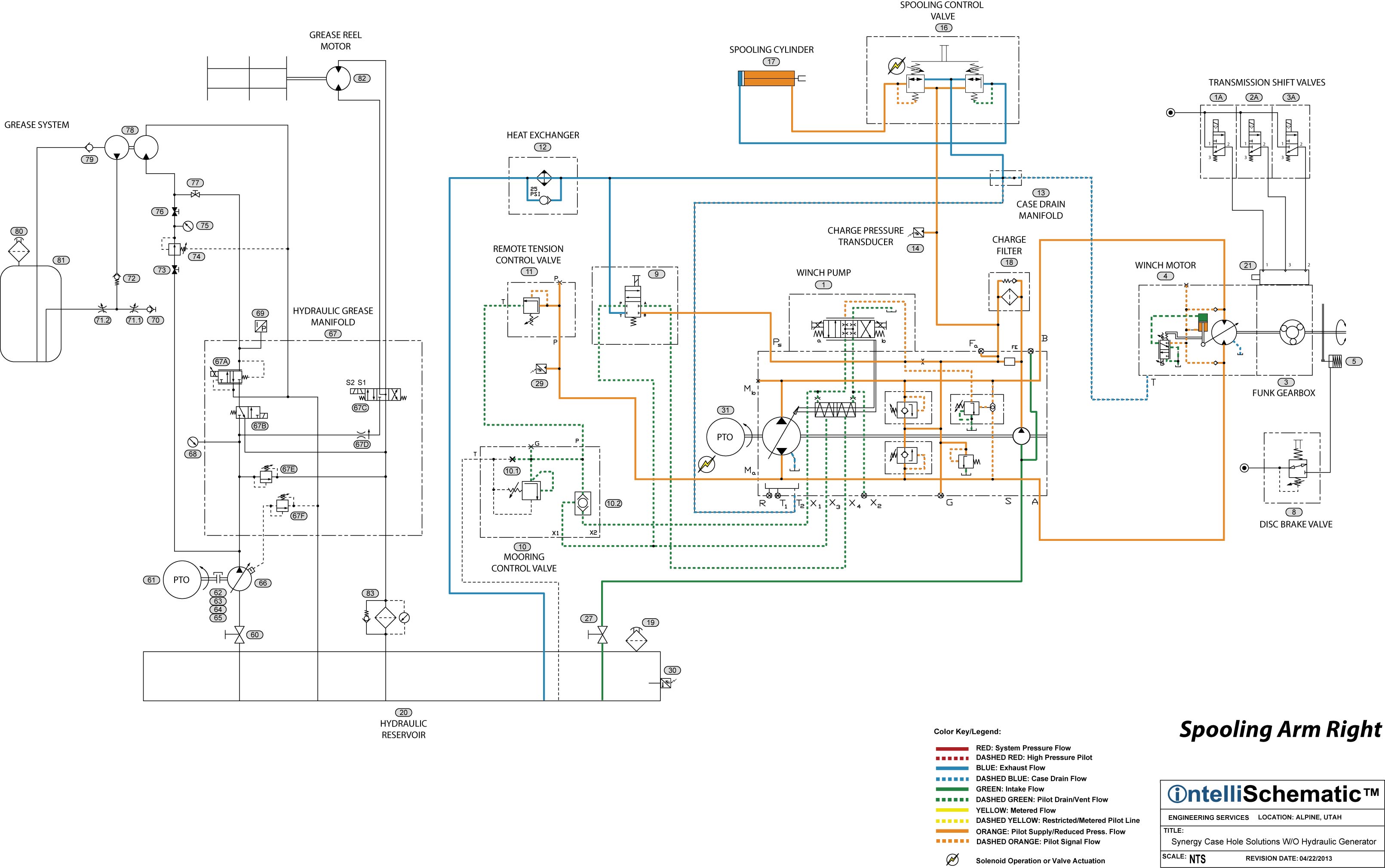

Event: Spooling Arm (Right)

1. See “Pump (Running) for first sequence of this event.

2. The operator shifts Spooler control Valve (16) in the operator’s cabin to the “RIGHT” position and fluid is directed to Spooling Cylinder (17) and moves the spooling head to the right as it retracts.

3. Fluid flow returning from Spooling Cylinder (17) flows through Spooler control Valve (16).

4. Fluid then flows through heat exchanger (12) where the fluid is cooled.

5. Fluid is then returned back to Tank (20).
