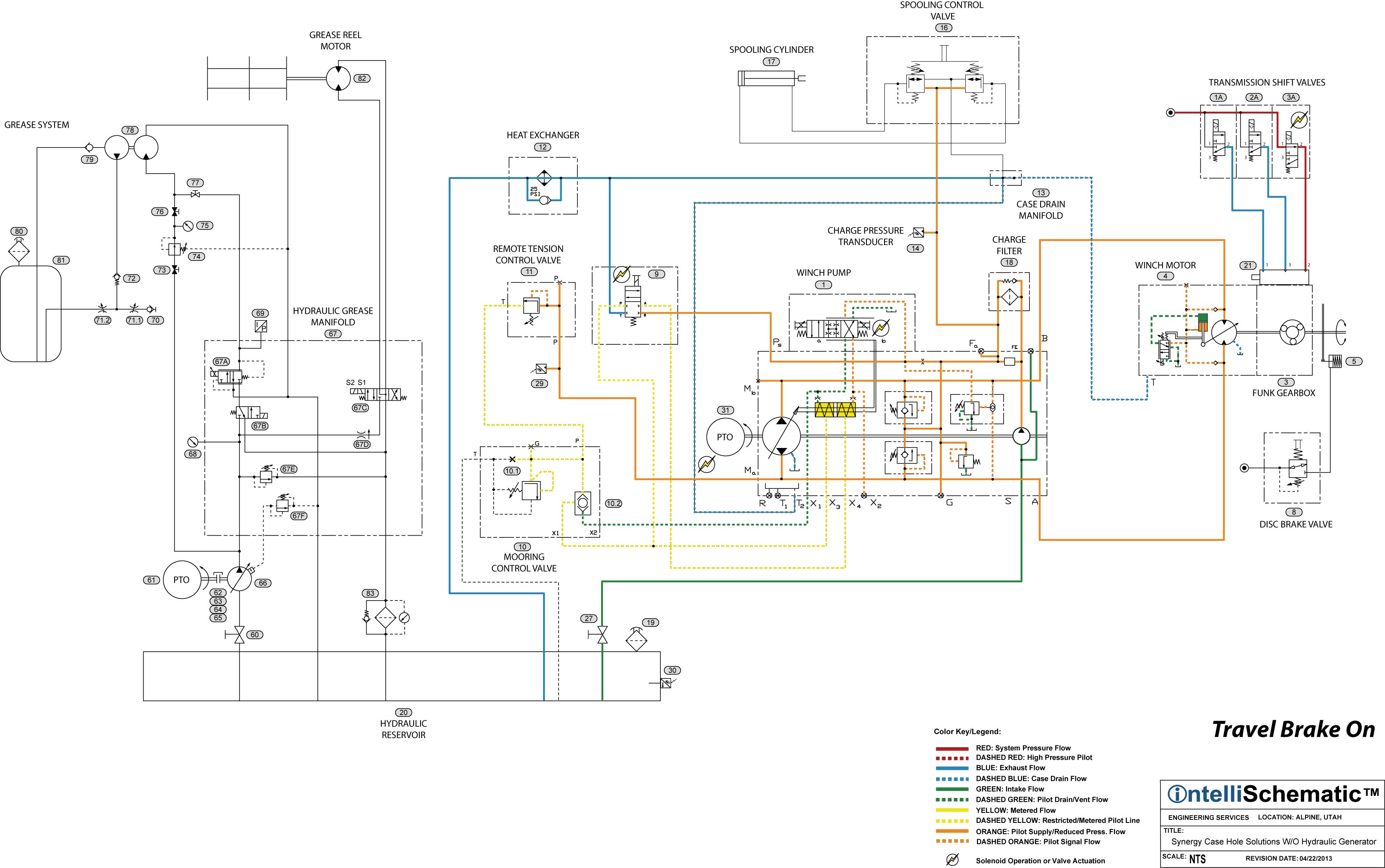

Event: Travel Brake (On)

1. See “Drum UP” or “Drum Down” for first sequence of this event.

2. When the operator energizes Dump Valve (9) port restricted metered fluid is directed to both ports X3 and X4 of Drum Pump (1).The effect is to bring Drum Pump (1) off stroke.

3. Any excess reduced pressure fluid is routed through Dump Valve (9) and flows through Cooler (12) and then back to Tank (20).
